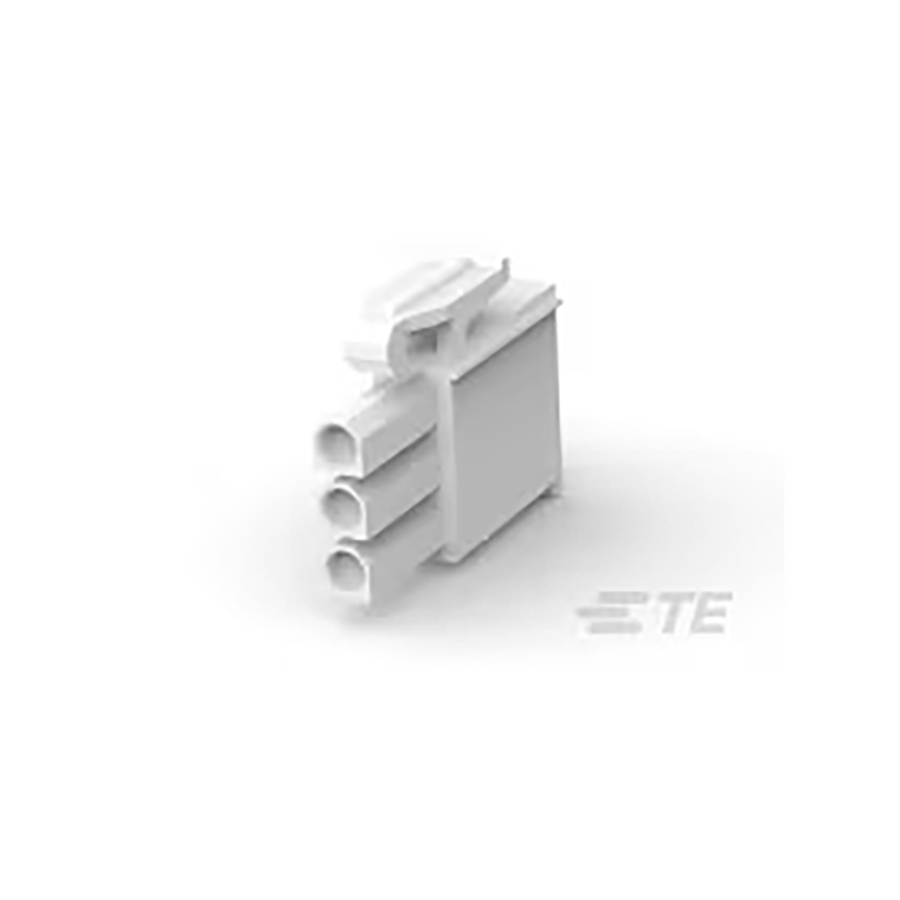

172337-1
Manufacturer:
TE Connectivity
Mfr.Part #:
172337-1
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:3 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 3 |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 23.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 4.2 mm |
| Current Rating | 9.5 A |
| Max Current Rating | 9.5 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 3 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Natural |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 117
Distributors
pcbx
pcbxUnit Price$0.22109
Ext.Price$0.22109
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22109 | $0.22109 |
| 10 | $0.19762 | $1.97620 |
| 50 | $0.17664 | $8.83200 |
| 100 | $0.15141 | $15.14100 |
| 500 | $0.12979 | $64.89500 |
| 1000 | $0.12425 | $124.25000 |
| 3000 | $0.11895 | $356.85000 |
| 5000 | $0.11388 | $569.40000 |
